CAT - CAT 300MİNİ EKSKAVATÖR KAZMA UÇLARI |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11236 | 302 - 303 - 304 - 305 | 135-9390 | 3-5 | BOLT: 159-8839 NUT: 8T-4778 | 11 | MINI EKSKAVATÖR | |
| ||||||||
CAT - CATBEKO-LODER KAZMA UÇLARI |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11194 | 416 - 428 C | 1U-3202 | BEKO-LODER BACKHOE LOADER | 21 | BEKO LODER | - | |
| 2 | 11005 | 416 - 426 - 428 - 432 | 9W-1879 6Y-6335 135-8203 | BEKO-LODER BACKHOE LOADER | BOLT: 4F-3656 | 21 | BEKO LODER | - |
| ||||||||
CAT - CAT 936LODER KAZMA UÇLARI |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 40936 | 920,926,936,938,941,943,950,951,953 | 6W-2985 4V-1544R 6W-2985 4V-1545L | LODER LOADER | - | 14 | LODER | - |
| 2 | 11141 | 920,926,930,936,941,943,950,951 | 3G-4259 | LODER LOADER | BOLT: 6F-0196 NUT: 2J-3505 | 17 | LODER | 40936 > |
| 3 | 11139 | 920,926,930,936,941,943,950,951 | 3G-4258 | LODER LOADER | BOLT: 6F-0196 NUT: 2J-3505 | 16 | LODER | 40936 > |
| 4 | 11144 | 920,930,936,941,943,950,951 -Ç940 | 1U-0257 | LODER LOADER | BOLT: 4F-3656 NUT: 4K-0367 | 15 | LODER | 40936 > |
| 5 | 11085 | 920,926,930,936,941,943,950,951 | 9N-4253 | LODER LOADER | PIN: 8E-6258 RETAINER: 8E-6259 | 1 | LODER | 11144 < |
| 6 | 11025 | 920,926,930,936,941,943,950,951 | 9N-4252 | LODER LOADER | PIN: 8E-6258 RETAINER: 8E-6259 | 1 | LODER | 11144 < |
| 7 | 11006 | 20,926,936,938,941,943,950,951,953 | 4T-6695 | LODER LOADER | BOLT: 1J-5607 NUT: 2J-3507 | 18 | LODER | 40936 > |
| 8 | 11283 | 931, 910 | 8J-6207 9J-4207 6Y-6227 | LODER LOADER | BOLT: 4F-3656 NUT: 5J-4771 | 11 | LODER | - |
| 9 | 11008 | 920,926,936,938,941,943,950,951,953 | 4V-1545 | LODER LOADER | - | LODER | 40936 > | |
| 10 | 11007 | 920,926,936,938,941,943,950,951,953 | 4V-1544 | LODER LOADER | - | LODER | 40936 > | |
| 11 | 11053 | 920,926,936,938,941,943,950,951,953 | 1U-1859 | LODER LOADER | BOLT: 6F-0196 NUT: 2J-3505 | 13 | LODER | 40936 > |
| 12 | 11052 | 920,926,936,938,941,943,950,951,953 | 1U-1858 | LODER LOADER | BOLT: 6F-0196 NUT: 2J-3505 | 12 | LODER | 40936 > |
| 13 | 11003 | 920,926,936,938,941,943,950,951,953 | 1U-1857 | LODER LOADER | BOLT: 4F-3656 NUT: 4K-0367 | 11 | LODER | 40936 > |
| ||||||||
CAT - CAT 950LODER KAZMA UÇLARI |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 40950 | 950 B,E,F,962 G,963 | 9V6573 5V1783R 9V6573 5V1784L | LODER LOADER | - | 14 | LODER | - |
| 2 | 22023 | 950 B,E,F | 5V-1784 | LODER LOADER | - | LODER | 40950 > | |
| 3 | 22022 | 950 B,E,F | 5V-1783 | LODER LOADER | - | LODER | 40950 > | |
| 4 | 11214 | 950 G | 8E5309 | LODER LOADER | BOLT: 5P-8823 NUT: 8362 | 17 | LODER | 40950 > |
| 5 | 11213 | 950 G | 8E5308 | LODER LOADER | BOLT: 5P-8823 NUT: 8362 | 16 | LODER | 40950 > |
| 6 | 11114 | 950 E,F,955,962,963, | 3G4309 | LODER LOADER | BOLT: 5P-8823 NUT: 8362 | 17 | LODER | 40950 > |
| 7 | 11113 | 950 E,F,955,962,963, | 3G4308 | LODER LOADER | BOLT: 5P-8823 NUT: 8362 | 16 | LODER | 40950 > |
| 8 | 11140 | 950 E,F,955,962,963, | 4T-4307 4T-5417 | LODER LOADER | BOLT: 5P-8136 NUT: 8J-2933 | 15 | LODER | 40950 > |
| 9 | 11033 | 950 E,F,955,962,963, | 9N-4302 | LODER LOADER | PIN: 9J-2308 RETAINER: 8E-6259 | 1 | LODER | 40950 > |
| 10 | 11004 | 950 E,F,955,962,963, | 1U-3302 | LODER LOADER | PIN: 9J-2308 RETAINER: 8E-6259 | 1 | LODER | 40950 > |
| 11 | 22062 | 950,953,963 | 4T-6693 | LODER LOADER | BOLT: 1J-5607 NUT:2J-3508 | 19 | LODER | 40950 > |
| 12 | 22026 | 953 | 4T-6694 | LODER LOADER | BOLT: 1J-5607 NUT:2J-3508 | 19 | LODER | 40950 > |
| 13 | 22027 | 950 B,E,F,962 G,963 | 140-7601 | LODER LOADER | BOLT: 1J-5607 NUT:2J-3508 | 19 | LODER | 40950 > |
| 14 | 11006 | 950 B,E,F,962 G,963 | 4T-6695 | LODER LOADER | BOLT: 1J-5607 NUT:2J-3507 | 18 | LODER | 40950 > |
| 15 | 11021 | 950 B,E,F,962 G,963 | 1U-1879 | LODER LOADER | BOLT: 5P-8823 NUT:3G-4309 | 13 | LODER | 40950 > |
| 16 | 11022 | 950 B,E,F,962 G,963 | 1U-1878 | LODER LOADER | BOLT: 5P-8823 NUT:3G-4309 | 12 | LODER | 40950 > |
| 17 | 11020 | 950 B,E,F,962 G,963 | 1U-1867 8E-1637 | LODER LOADER | BOLT: 8J-2928 NUT:1J-3527 | 11 | LODER | 40950 > |
| 18 | 11079 | 950 B,E,F,962 G,963 | 1U-1867 8E-1637 | LODER LOADER | BOLT: 8J-2928 NUT:1J-3527 | 11 | LODER | 40950 > |
| ||||||||
CAT - CAT 955LODER KAZMA UÇLARI |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 40955 | 955 L | 6K-3271 | LODER LOADER | - | 14 | LODER | - |
| 2 | 11002 | 955 L-840B | 8J-4691 1U-1877 | LODER LOADER | BOLT: 8J-2928 NUT: 8J-2933 | 11 | LODER | 40955 |
| 3 | 11001 | 955 L-840B | 1U-1877 8J-4692 | LODER LOADER | BOLT: 8J-2928 NUT: 8J-2933 | 11 | LODER | 40955 |
|
| ||||||||
CAT - CAT 966LODER KAZMA UÇLARI |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11235 | 966 D,E,F,970,973,977 | 9N-4353 | LODER LOADER | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | LODER | 40966 > |
| 2 | 11316 | 966 D,E,F,970,973,977 | 9N-4352 | LODER LOADER | PIN: 8E-6358 RETAINER: 8E-6359 | 2 | LODER | 40966 > |
| 3 | 11016 | 966 D,E,F,970,973,977 | 9N-4352 | LODER LOADER | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | LODER | 40966 > |
| 4 | 11018 | 966 D,E,F,970,973,977 | 1U-3352 | LODER LOADER | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | LODER | 40966 > |
| 5 | 33028 | 966 H | 135-9296 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 6 | 33027 | 966 H | 135-9295 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | 40966 > |
| 7 | 33026 | 966 H | 135-9294 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 8 | 22195 | 966 D,E,F 970 F | 3G-6395 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 9 | 22193 | 966 D,E,F 970 F | 1U-0593 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 10 | 33022 | 966 G,F | 4T-9124 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | 40966 > |
| 11 | 33021 | 966 G,F | 4T-9123 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 12 | 33020 | 966 G,F | 4T-3015 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40966 > |
| 13 | 22088 | 966 D,E,F, | 100-6666 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | 40966 > |
| 14 | 11013 | 966 D,E,F 970,973,977 | 4T-6699 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8363 | 19 | LODER | 40966 > |
| 15 | 11197 | 966 D,E,F,973,970 F,977 | 1U-1889 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8362 | 13 | LODER | 40966 > |
| 16 | 11196 | 966 D,E,F,973,970 F,977 | 1U-1888 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8362 | 12 | LODER | 40966 > |
| 17 | 11195 | 966 D,E,F,973,970 F,977 | 1U-1567 6Y-0649 | LODER LOADER | BOLT: 5P-8361 NUT: 5P-8362 | 11 | LODER | 40966 > |
| 18 | 11011 | 966 D,E,F,973,970 F,977 | 1U-1889 | LODER LOADER | BOLT: 5P-8823 NUT:S5P-8362 | 13 | LODER | 40966 > |
| 19 | 11010 | 966 D,E,F,973,970 F,977 | 1U-1888 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8362 | 12 | LODER | 40966 > |
| 20 | 11009 | 966 D,E,F,973,970 F,977 | 1U-1567 6Y-0649 | LODER LOADER | BOLT: 5P-8361 NUT: 5P-8362 | 11 | LODER | 40966 > |
| ||||||||
CAT - CAT 973LODER KAZMA UÇLARI |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 40973 | 973 | 6W2982 4V7174R 6W2982 4V7175L | LODER LOADER | - | 14 | LODER | - |
| 2 | 33025 | 972 G | 116-7462 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40973 |
| 3 | 33024 | 972 G | 116-7461 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40973 |
| 4 | 33023 | 972 G | 116-7460 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40973 |
| 5 | 22039 | 973 | 4T-6697 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | 40973 |
|
| ||||||||
CAT - CAT 980-988LODER KAZMA UÇLARI |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22034 | 992 | 4T6760 | LODER LOADER | BOLT: 5P-8823 NUT: 5P-8364 | 19 | LODER | - |
| 2 | 11128 | 992 | 3G-9494 | LODER LOADER | - | 4 | LODER | - |
| 3 | 11012 | 992 | 9N-4552 | LODER LOADER | PIN: 6Y8558 RETAINER: 8E5559 | 1 | LODER | 11118 |
| 4 | 22014 | 980 G | 1099215 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | - |
| 5 | 22012 | 990, 992D | 1U0740 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | - |
| 6 | 33012 | 988 F | 1099082 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | - |
| 7 | 33011 | 988 F | 1099081 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | - |
| 8 | 33010 | 988 F | 1099080 | LODER LOADER | BOLT: 5P-8823 NUT:5P-8364 | 19 | LODER | - |
| 9 | 11028 | 983,988 B | 8E6464-1U1454-6I6464 | LODER LOADER | - | 4 | LODER | - |
| 10 | 11138 | 983,988 B | 9W8452-8J1452 | LODER LOADER | PIN: 6Y2527 RETAINER: 8E6359 | 19 | LODER | 11118 |
| 11 | 11015 | 983,988 B | 9W8459 | LODER LOADER | PIN: 6Y2527 RETAINER: 8E6359 | 2 | LODER | 11118 |
| 12 | 11305 | 983,988 B | 9W-8452PT-138-6451 | LODER LOADER | PIN: 6Y2527 RETAINER: 8E6359 | 1 | LODER | 11118 |
| 13 | 11032 | 983,988 B | 9N4453-9W1453 | LODER LOADER | PIN: 6Y2527 RETAINER: 8E6359 | 1 | LODER | 11118 |
| 14 | 11120 | 980 F,G | 125-8406 | LODER LOADER | - | 4 | LODER | - |
| 15 | 11119 | 980 F,G | 125-8405 | LODER LOADER | - | 4 | LODER | - |
| 16 | 11118 | 980 F,G | 125-8404 | LODER LOADER | - | 4 | LODER | - |
| 17 | 11170 | 980 G | 138-6458 | LODER LOADER | PIN: 7T-3408 RETAINER: 8E-8409 | 1 | LODER | 11118 |
| 18 | 11017 | 980 F,G | 8E-4402 | LODER LOADER | PIN: 7T-3408 RETAINER: 8E-8409 | 1 | LODER | 11118 |
| ||||||||
CAT - CAT 315EKSKAVATÖR KAZMA UÇLARI (J 250 SERİSİ |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | - | 315,315 L,317 L,318,318 M | 6Y-3254 | 15 | - | 4 | EKSKAVATÖR | - |
| 2 | 11085 | 315,315 L,317 L,318,318 M | 9N-4253 | 15 | PIN: 8E-6258 RETAINER: 8E-6259 | 1 | EKSKAVATÖR | 6Y-3254 |
| 3 | 11025 | 315,315 L,317 L,318,318 M | 9N-4252 | 15 | PIN: 8E-6258 RETAINER: 8E-6259 | 1 | EKSKAVATÖR | 6Y-3254 |
|
| ||||||||
CAT - CAT 315EKSKAVATÖR KAZMA UÇLARI (J 300 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11133 | 215 | 3G-6306 | 15 | - | 4 | EKSKAVATÖR | - |
| 2 | 11132 | 215 | 3G-6305 | 15 | - | 4 | EKSKAVATÖR | - |
| 3 | 11131 | 215 | 3G-6304 | 15 | - | 4 | EKSKAVATÖR | - |
| 4 | 11233 | 215 | 8E-9490 | 15 | PIN: 9J-2308 RETAINER: 8E-6259 | 4 | EKSKAVATÖR | 11131 |
| 5 | 11033 | 215 | 9N-4302 | 15 | PIN: 9J-2308 RETAINER: 8E-6259 | 1 | EKSKAVATÖR | 11131 |
| 6 | 11234 | 215 | 1U-3302RC | 15 | PIN: 9J-2308 RETAINER: 8E-6259 | 2 | EKSKAVATÖR | 11131 |
| 7 | 11004 | 215 | 1U-3302 | 15 | PIN: 9J-2308 RETAINER: 8E-6259 | 1 | EKSKAVATÖR | 11131 |
|
| ||||||||
CAT - CAT 225EKSKAVATÖR KAZMA UÇLARI (J 350 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11135 | 225 | 3G-8356 8J-4312 | 25 | - | 4 | EKSKAVATÖR | - |
| 2 | 11134 | 225 | 3G-8355 8J-4311 | 25 | - | 4 | EKSKAVATÖR | - |
| 3 | 11034 | 225 | 3G-8354 8J-4310 | 25 | - | 4 | EKSKAVATÖR | - |
| 4 | 11154 | 225 | 1U-3351 | 25 | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | EKSKAVATÖR | 11034 |
| 5 | 11016 | 225 | 9N-4352 | 25 | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | EKSKAVATÖR | 11034 |
| 6 | 11018 | 225 | 1U-3352 | 25 | PIN: 8E-6358 RETAINER: 8E-6359 | 1 | EKSKAVATÖR | 11034 |
|
| ||||||||
CAT - CAT 330EKSKAVATÖR KAZMA UÇLARI (J 400 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11137 | 231 D,320,322,325,330 | 6I-6404 | 30 | PIN: 7T-3408 RETAINER: 8E-8409 | 4 | EKSKAVATÖR | - |
| 2 | 11166 | 231 D,320,322,325,330 | 9N-4564 | 30 | PIN: 7T-3408 RETAINER: 8E-8409 | 1 | EKSKAVATÖR | 11137 |
| 3 | 11170 | 231 D,320,322,325,330 | 138-6458 | 30 | PIN: 7T-3408 RETAINER: 8E-8409 | 1 | EKSKAVATÖR | 11137 |
| 4 | 11017 | 231 D,320,322,325,330 | 8E-4402 | 30 | PIN: 7T-3408 RETAINER: 8E-8409 | 1 | EKSKAVATÖR | 11137 |
|
| ||||||||
CAT - CAT 235EKSKAVATÖR KAZMA UÇLARI (J 450 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11028 | 235,330L,350MLE | 8E-6464 1U-1454 6I-6464 | 35 | PIN: 6Y-2527 RETAINER: 8E-6359 | 4 | EKSKAVATÖR | - |
| 2 | 11138 | 235,330L,350MLE | 9W-8452 8J-1452 | 35 | PIN: 6Y-2527 RETAINER: 8E-6359 | 1 | EKSKAVATÖR | 11028 |
| 3 | 11015 | 235,330L,350MLE | 9W-8459 | 35 | PIN: 6Y-2527 RETAINER: 8E-6359 | 2 | EKSKAVATÖR | 11028 |
| 4 | 11032 | 235,330L,350MLE | 9N-4453 9W-1453 | 35 | PIN: 6Y-2527 RETAINER: 8E-6359 | 1 | EKSKAVATÖR | 11028 |
|
| ||||||||
CAT - CAT 350EKSKAVATÖR KAZMA UÇLARI (J 550 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11128 | 245,350, | 3G-9494 | 50 | - | 4 | EKSKAVATÖR | - |
| 2 | 11012 | 245,350, | 9N-4552 | 50 | PIN: 6Y8558 RETAINER: 8E5559 | 1 | EKSKAVATÖR | 11128 |
|
| ||||||||
CAT - CAT 375EKSKAVATÖR KAZMA UÇLARI (J 600 SERİSİ) |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11103 | 375 | 6I-6602 | 75 | PIN: 1139608 RETAINER: 1139609 | 1 | EKSKAVATÖR | - |
|
| ||||||||
CAT - CAT D4-D5DOZER BIÇAKLARI VE RİPERLERİ |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22078 | D 5, D 4 | 4T-8940 | DOZER | BOLT: 5J-4773 NUT: 2J3506 | 10 | DOZER | - |
| ||||||||
CAT - CAT D6DOZER BIÇAKLARI VE RİPERLERİ |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22162 | D 6 A, C | 5J-6940 4T-3042 | DOZER | BOLT: 4F-7827 NUT: 2J-3506 | 8 | DOZER | - |
| 2 | 22161 | D 6 A, C | 5J-6939 4T-3041 | DOZER | BOLT: 4F-7827 NUT: 2J-3506 | 9 | DOZER | - |
| 3 | 22160 | D 6 A, C | 4T-3009 | DOZER | BOLT: 4F-7827 NUT: 2J-3506 | 10 | DOZER | - |
| ||||||||
CAT - CAT D7DOZER BIÇAKLARI VE RİPERLERİ |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22024 | D 7 G,D 7 R,D 8 H | 22024 | DOZER | - | 7 | DOZER | - |
| 2 | 22004 | D 7 G,D 7 R,D 8 H | 9J-1642 | DOZER | - | 6 | DOZER | - |
| 3 | 11023 | D 7 G,14 G,16 G | 9J-8920 7J-6844 6Y-0359 | DOZER | PIN: 114-0358 RETAINER: 114-0359 | 5 | DOZER | 22004 |
| 4 | 22172 | D 7 R | 9W-6199 | DOZER | BOLT: 5J-2409 NUT: 2J-3505 | 8 | DOZER | - |
| 5 | 22171 | D 7 R | 9W-6198 | DOZER | BOLT: 5J-2409 NUT: 2J-3505 | 9 | DOZER | - |
| 6 | 22107 | D 7 R | 7T-6589 | DOZER | BOLT: 6F-0196 NUT: 2J-3505 | 10 | DOZER | - |
| 7 | 22001 | D 7 G,D 7 R,D 8 H | 3G-8316 3G-8294 4J-8844 | DOZER | BOLT: 5J-2409 NUT: 2J-3505 | 8 | DOZER | - |
| 8 | 22002 | D 7 G,D 7 R,D 8 H | 3G-8315 3G-8293 4J-8843 | DOZER | BOLT: 5J-2409 NUT: 2J-3505 | 9 | DOZER | - |
| 9 | 22031 | D 7 G,D 7 R,D 8 H | 4T-2989 | DOZER | BOLT: 5J-4771 NUT: 2J-3506 | 10 | DOZER | - |
| 10 | 22003 | D 7 G,D 7 R,D 8 H | 4T-2948 | DOZER | BOLT: 5J-4771 NUT: 2J3506 | 10 | DOZER | - |
| ||||||||
CAT - CAT D8DOZER BIÇAKLARI VE RİPERLERİ |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22068 | D8 H,K,L,N,D9 N,R | 8E-1848 | DOZER | - | 7 | DOZER | - |
| 2 | 22011 | D8 H,K,L,N,D9 N,R | 6J-8814 | DOZER | - | 7 | DOZER | - |
| 3 | 22010 | D8 H,K,L,N,D9 N,R | 4T-8315 7J-1791 | DOZER | - | 6 | DOZER | - |
| 4 | 11031 | D8 H,K,L,N,D9 N,R | 9W-2451 6J-8812 4T-4451 | DOZER | 4T-2479 | 5 | DOZER | 22010 |
| 5 | 22036 | CAT 824C | 5J-6811 | DOZER | BOLT: 5J-4771 NUT: 2J-3506 | 10 | DOZER | - |
| 6 | 22097 | CAT D8N, R | 4T-6381 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 10 | DOZER | - |
| 7 | 22096 | CAT D8N, R | 6Y-5540 4T-9587 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 10 | DOZER | - |
| 8 | 22095 | CAT D8N, R, D9N, R | 8E-4196 9W-6193 7T-9090 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 8 | DOZER | - |
| 9 | 22094 | CAT D8N, R, D9N, R | 8E-4197 9W-6192 7T-9089 | DOZER | BOLT: 4J-9208 NUT:2J-3507 | 9 | DOZER | - |
| 10 | 22087 | CAT D8L, D8N, D8R | 9W-4398 4T-9838 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 10 | DOZER | - |
| 11 | 22086 | CAT D8L, D8N, D8R | 9W-4396 4T-9586 | DOZER | BOLT: 4J-9208 NUT:2J-3507 | 10 | DOZER | - |

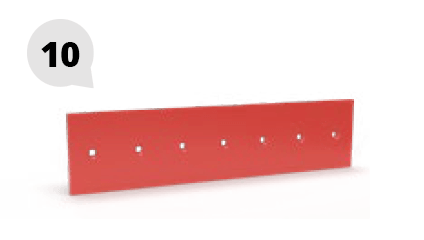

| 12 | 22085 | CAT D8L, D8N, D8R | 9W-4396 4T-9586 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 10 | DOZER | - |
| 13 | 22084 | CAT D8L, D8N, D8R | 3G-8284,8E4194 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 8 | DOZER | - |
| 14 | 22083 | CAT D8L, D8N, D8R | 3G-8283,8E-4193 | DOZER | BOLT: 4J-9208 NUT: 2J-3507 | 9 | DOZER | - |
| 15 | 22108 | D 8 H | 4T-6532 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 10 | DOZER | - |
| 16 | 22030 | D 8 H, K | 4T-2988 8J-8118 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 10 | DOZER | - |
| 17 | 22029 | D 8 H, K | 9J-1480 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 8 | DOZER | - |
| 18 | 22028 | D 8 H, K | 9J-1479 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 9 | DOZER | - |
| 19 | 22129 | D 8 H, K | 3G-8280 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 8 | DOZER | - |
| 20 | 22128 | D 8 H, K | 3G-8279 | DOZER | BOLT: 4J-9058 NUT: 2J-3507 | 9 | DOZER | - |
| ||||||||
CAT - CAT D9DOZER BIÇAKLARI VE RİPERLERİ |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 22069 | D9L,R,D10,D10N,D10R,D11N | 1U-3630 | DOZER | - | 6 | DOZER | - |

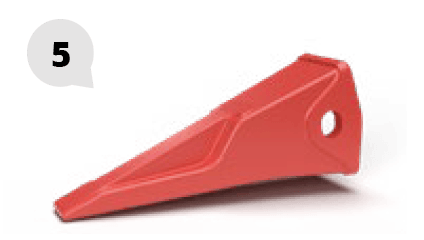

| 2 | 11901 | D9L,R,D10,D10N,D10R,D11N | 4T-5502 | DOZER | PIN: 6Y-1204 | 5 | DOZER | 22069 |
| 3 | 11900 | D9L,R,D10,D10N,D10R,D11N | 4T-4501 | DOZER | PIN: 6Y-1204 | 5 | DOZER | 22069 |
|
| ||||||||
CAT - CAT D10 - D11DOZER BIÇAKLARI VE RİPERLERİ |
|
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|
| 1 | 11295 | D10 | 125-0800 | DOZER | - | 7 | DOZER | - |
| 2 | 11294 | D11 | 6Y-8960 | DOZER | - | 7 | DOZER | - |
| 3 | 11902 | D11N | 9W-4552 | DOZER | PIN: 9N-4245 | 5 | DOZER | - |
|
| ||||||||
CAT - CAT GREYDERYAN BIÇAKLARI VE RİPERLERİ |
 |
| # | SCF REF | MARKA&MODEL | ORIJINAL REF | MAKİNA TONAJ | YARDIMCI MALZEMELER ÖLÇÜLENDİRME | ÜRÜN TİPİ | MAKİNE TİPİ | ADAPTÖR |
|---|---|---|---|---|---|---|---|---|

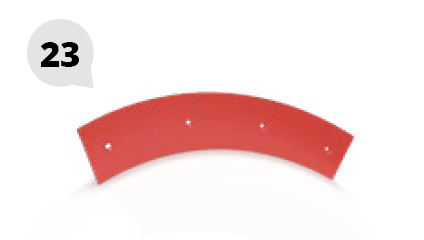

| 1 | 22061 | 12H, 120H, 135H, 140H | 8E-5531 | GRADER | BOLT: 3F-5108 NUT: 4K-0367 | 23 | GREYDER | - |
| 2 | 22060 | 12G,112,120G,130G,140G | 7D-2052 | GRADER | BOLT: 1J-6762 NUT: 2J-3506 | 23 | GREYDER | - |
| 3 | 22059 | 14 G | 6Y-2805 | GRADER | BOLT: 1J-6762 NUT: 2J-3506 | 23 | GREYDER | - |
| 4 | 22063 | 12,14G, 130, 140H,951, 963, D4 | 9J-8910 6Y-0309 | GRADER | PIN: 136-8308 RETAINER: 114-0359 | 6 | GREYDER | 22013 |
| 5 | 22013 | 12,14G, 130, 140H,951, 963, D4 | 9J-6586 | GRADER | PIN: 136-8308 RETAINER: 114-0359 | 5 | GREYDER | - |
| ||||||||
